Do you support OEM/ODM service?

Yes. We support OEM/ODM customization including branding, enclosure, BMS parameters and capacity configuration. Please contact us with your requirements.

What certifications are available for this product?

Products are tested and certified according to destination-market requirements (such as CE, UN38.3, MSDS). Please contact our sales team for the certificate package of a specific model.

How can I get a quotation?

Click "Get a Quote" on this page or send us an inquiry via the contact form with the product model and quantity, and our sales team will reply within 24 hours on business days.

16kWh Residential Energy Storage Battery | 51.2V LiFePO4

Name: 16kWh Residential Battery (51.2V)
Brand: TENGXIN ESS
SKU: RES-16KWH

Residential Battery 16kWh

Product Overview

16 kWh Residential Energy Storage

51.2V LiFePO4 · Heating Film Optional

16 kWh Capacity · 51.2V

LiFePO4 Battery Cells

Jikong Active Balancing BMS 200/300A

≥6000 Cycles @80% DOD

Optional Heating Film 30W

3-Year Warranty

Functions & Characteristics

Active Balancing BMS (Bluetooth)

Jikong 200/300A active balancing BMS with Bluetooth connection.

Long Cycle Life

Cycle life ≥6000 cycles @80% DOD.

Wide Operating Temperature

Operating temperature -20°C ~ +60°C.

Optional Heating Film

30W heating film with BMS-adjustable start/stop temperatures (≤5°C / ≥15°C).

Mobile Design

Mobile installation with casters for easy positioning.

IP21 Protection Class

Suitable for indoor use.

Certified & Warrantied

CE / IEC62619 / UN38.3 certified, 3-year warranty.

Technical Data

Parameter	Specification
Product Name	16 kWh Residential Energy Storage Battery (Heating Film Optional)
Rated Capacity	16kWh
Rated Voltage	51.2V
Battery Type	LiFePO4
Protection Board	Jikong Active Balancing BMS 200/300A
Cycle Life	≥6000 cycles @80% DOD
Operating Temperature	-20°C ~ +60°C
Heating Film Power	30W
Heating Start Temp	≤5°C (BMS adjustable)
Heating Stop Temp	≥15°C (BMS adjustable)
Protection Class	IP21

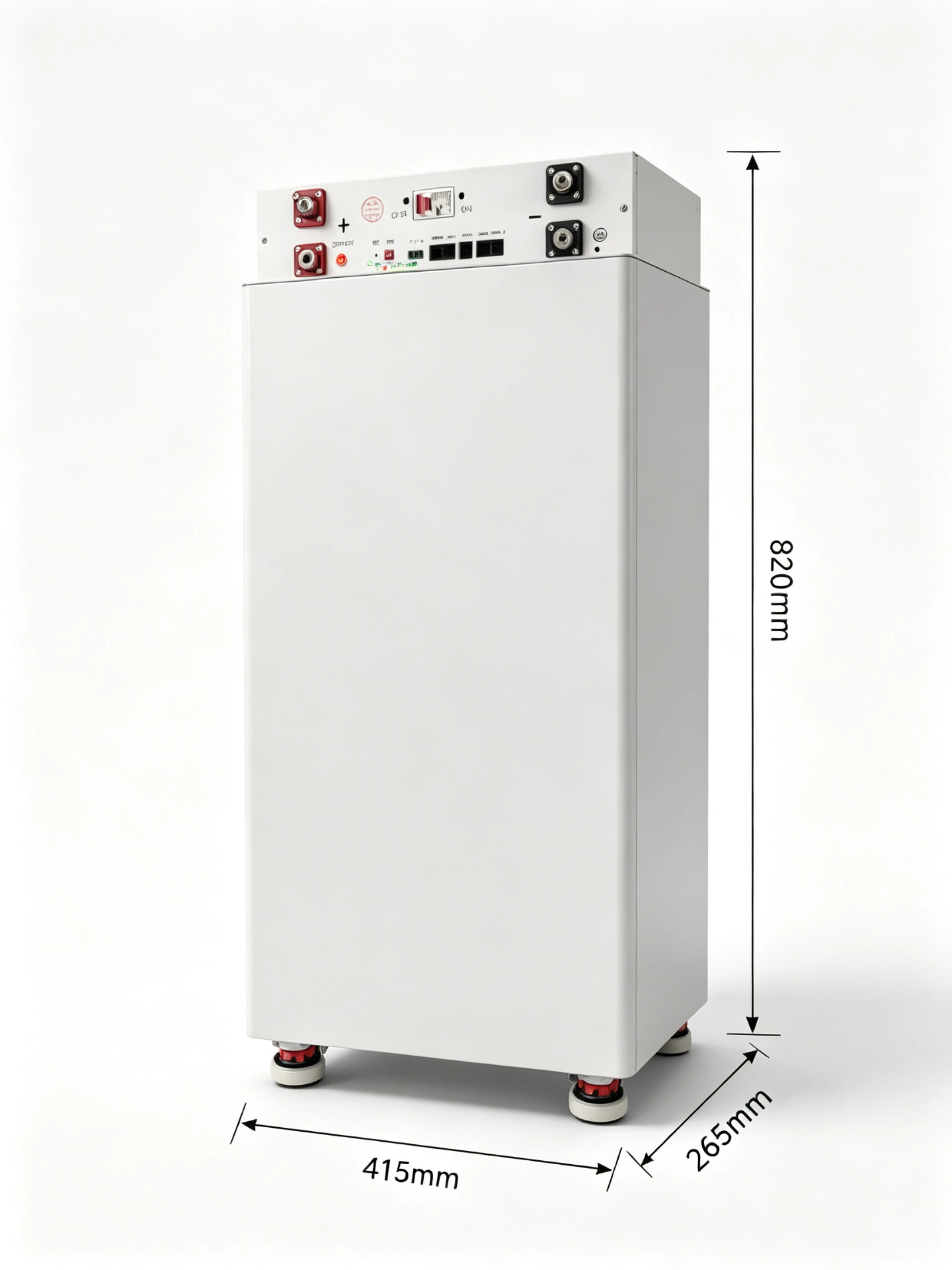

Dimensions (L×W×H)	415×265×820 mm
Weight	125kg
Certification	CE / IEC62619 / UN38.3 / MSDS
Installation Method	Mobile
Warranty	3 Years

The above parameters are subject to the actual product.

Installation & Use

Mobile installation with casters, easy to place and move.

Bluetooth connection to the BMS for battery status monitoring.

Optional 30W heating film for low-temperature environments.

Intelligent Monitoring & Safety Protection

Built-in Jikong active balancing BMS with Bluetooth connection for battery status monitoring.

Comprehensive BMS protection extends battery life and ensures efficient output.

BMS Protection Functions

Overcharge Protection

Over-Discharge Protection

Overcurrent Protection

Over-Temperature Protection

Short Circuit Protection

Active Cell Balancing

Qualifications & Certifications

CE Certification

IEC62619

IEC 62619 Safety Certification for Lithium Batteries

UN38.3

UN 38.3 Transport Test for Lithium Batteries

MSDS

Material Safety Data Sheet

Product Gallery
